15W,Cutout 95mm,Beam15°/20°/24°/36°/38°/40°/45°/60°,Horizontal 355° + Vertical 30°,UGR<19,IP65,Honeycomb louver Optional,Deep Trim Adjustable LED Downlight

型号

IBSP104CT095H98

产品尺寸

Ø110mm×H98m

开孔尺寸

95mm

应用场景

Guestroom & Suite

Lobby & Reception

Restaurant

Conference Room & Office

Corridor & Hallway

Shop

功率

15W

发光角度

15°20°24°36°38°40°45°60°

光色选择

2700K3000K3500K4000K5000K5700K6500K

显色指数

Ra.80Ra.90Ra.98

功率因素

PF>0.5PF>0.9

工作电压

AC200-240VAC100-277V

防水等级

IP65

调光方式

ON/OFFTriac Dimming0-10V DimmingDALI Dimming

可选光源

CREEBridgeluxHongliPhilipsOsram

可选电源

EagelriseLifudOsram

安装方式

Recessed Mount

数量：	- +

加入购物车我要询价

产品描述

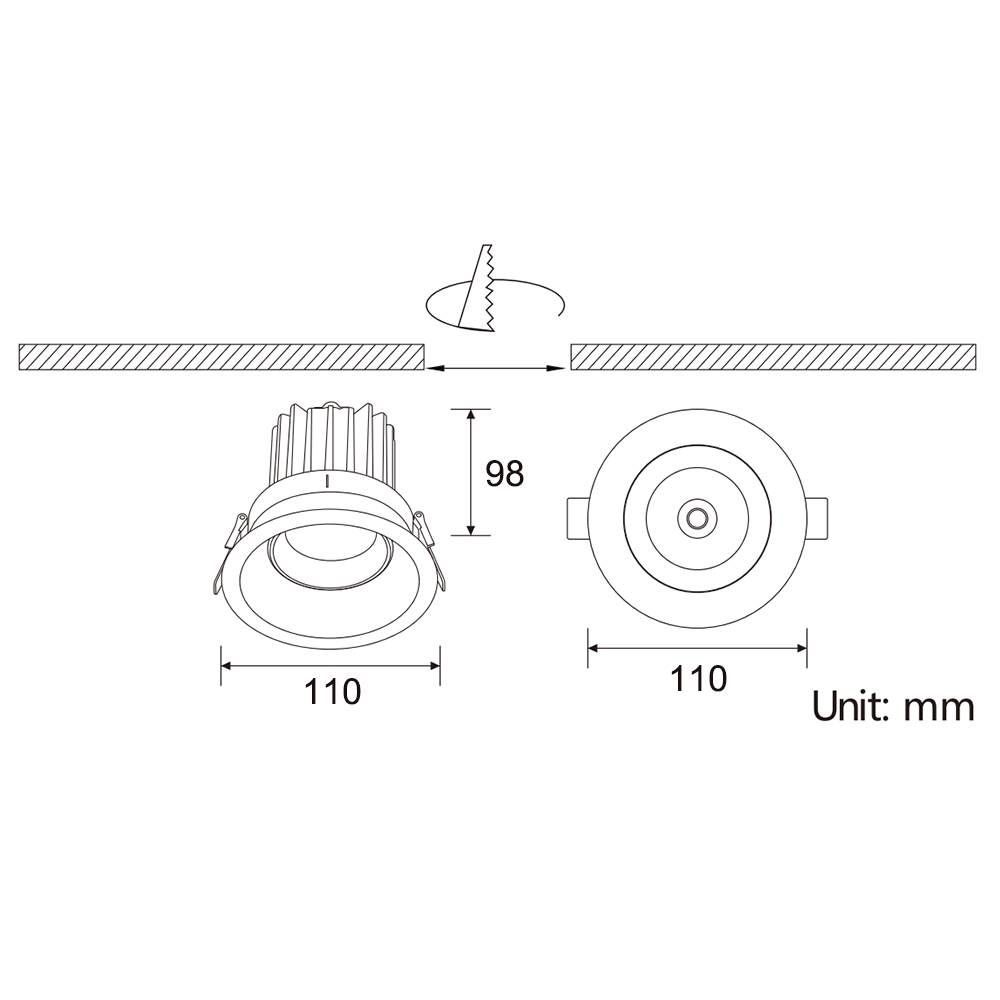

线条艺术
数据表
IES

Model No.	Watts	Lamp Outer Size	Cutout Hole Size	Beam Angle
IBSP104CT080	8W	Ø93mm×H85mm	Ø80mm	Reflector 20°\| 40°\|60° Lens 15°\| 24°\|36°\|50° (Adjustable: horizontal 355°+vertical 30°)
IBSP104CT095 (H78)	10W	Ø110mm×H78mm	Ø95mm	Reflector 15°\| 24°\|38°\|45°\|60° (Adjustable: horizontal 355°+vertical 30°)
IBSP104CT095 (H98)	15W	Ø110mm×H98mm	Ø95mm	Reflector 15°\| 24°\|38°\|45°\|60° Lens15°\| 24°\|38° (Adjustable: horizontal 355°+vertical 30°)
IBSP104CT095H124	25W	Ø110mm×H124mm	Ø95mm	Reflector 15°\| 24°\|38°\|45°\|60° (Adjustable: horizontal 355°+vertical 30°)
IBSP104CT120	28W	Ø135mm×H125mm	Ø120mm	Reflector 15°\| 24°\|38°\|45°\|60° (Adjustable: horizontal 355°+vertical 30°)
IBSP104CT095H124	40W	Ø135mm×H140mm	Ø120mm	Reflector 15°\| 24°\|38°\|45°\|60° (Adjustable: horizontal 355°+vertical 30°)
