点击放大

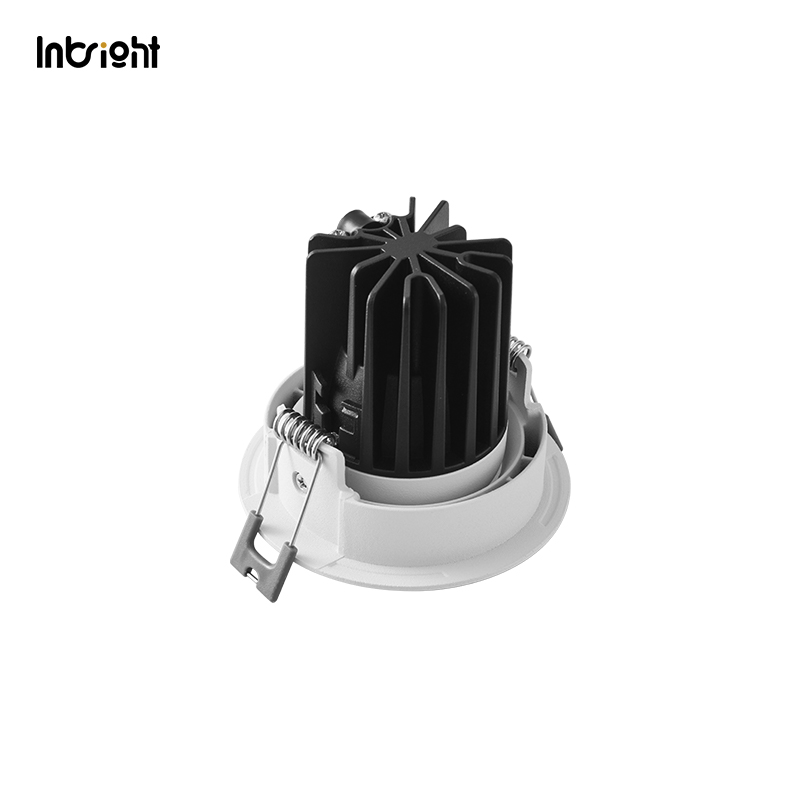

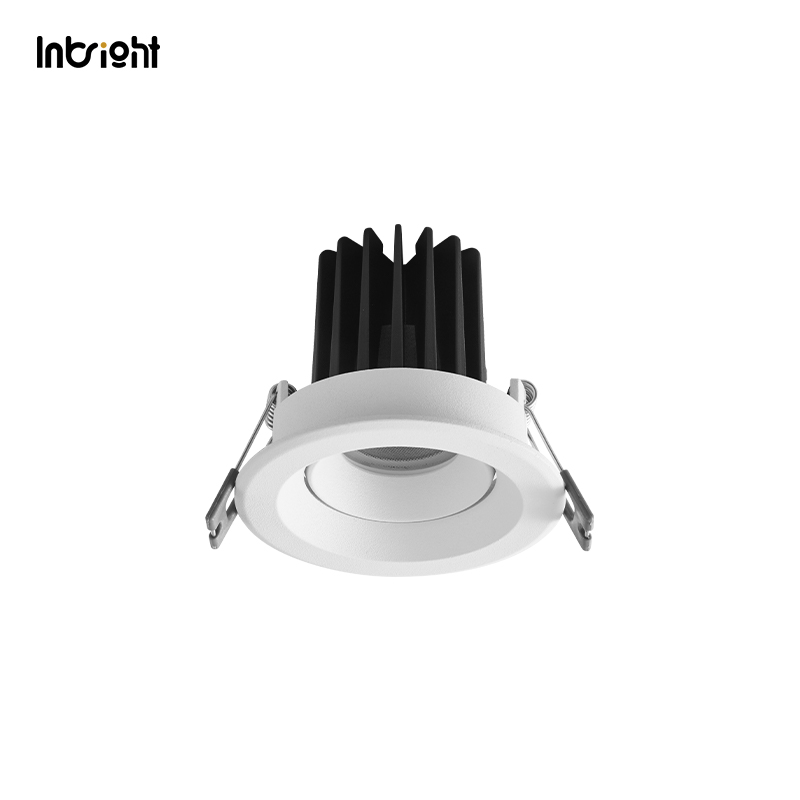

8W,Cutout 75mm,Beam15°/24°/38°/45°/60°,100lm/W,Adjustable +/-30°,IP65 with Glass Diffuser,Honeycomb louver Optional,Shallow Trim Recessed LED Downlight

型号

IBSP151CT075H72

产品尺寸

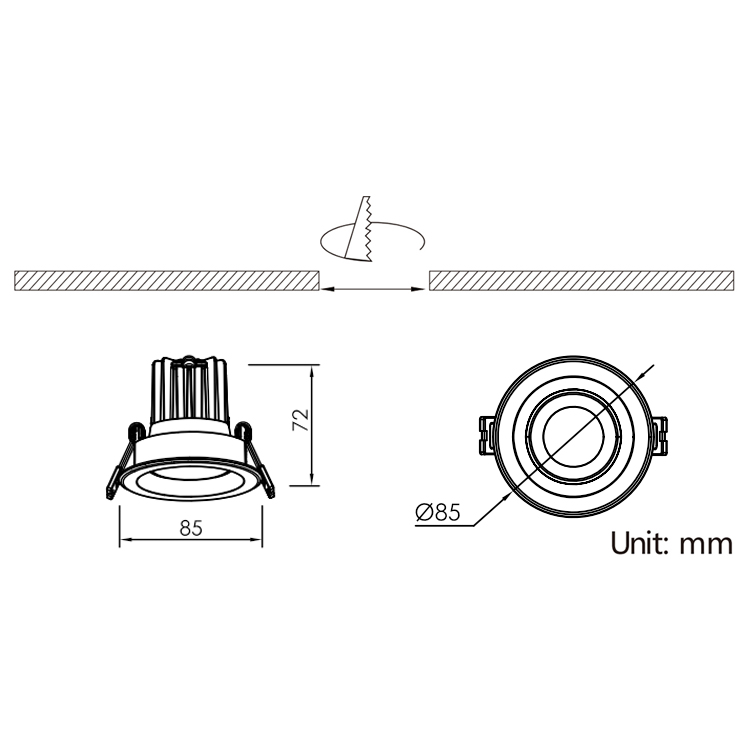

Ø85*72mm

开孔尺寸

75mm

应用场景

Guestroom & Suite

Lobby & Reception

Restaurant

Conference Room & Office

Corridor & Hallway

Shop

功率

发光角度

15°24°36°50°Reflector 20°丨40°丨60°丨

光色选择

2700K3000K3500K4000K5000K5700K6500K

显色指数

Ra.80Ra.90Ra.98

功率因素

PF>0.5PF>0.9

工作电压

AC200-240VAC100-277V

防水等级

IP65

调光方式

ON/OFFTriac Dimming0-10V DimmingDALI Dimming

可选光源

CREEBridgeluxHongliPhilipsOsram

可选电源

EagelriseLifudOsram

安装方式

Recessed Mount

数量：	- +

加入购物车我要询价

产品描述
线条艺术
数据表
IES

Model No.	Watts	Lamp Outer Size	Cutout Hole Size	Beam Angle
IBSP151CT075H72	8W	Ø85*72mm	Ø75mm	Reflector 20°\| 40°\|60° Lens 15°\| 24°\|36°\|50° (Adjustable:vertical 30°)
IBSP151CT075H76	15W	Ø85*H76mm	Ø75mm	Reflector 20°\| 40°\|60° Lens 15°\| 24°\|36°\|50° (Adjustable:vertical 30°)
IBSP151CT095H67	10W	Ø105*67mm	Ø95mm	Reflector 15°\| 24°\|38°\|45°\|60° (Adjustable:vertical 30°)
IBSP151CT095H88	15W	Ø105*88mm	Ø95mm	Reflector 15°\| 24°\|38°\|45°\|60° Lens15°\| 24°\|38° (Adjustable:vertical 30°)
IBSP151CT095H114	25W	Ø105*114mm	Ø95mm	Reflector 15°\| 24°\|38°\|45°\|60° (Adjustable:vertical 30°)
