IBDL232--LED Downlight-Surface Mount series--Jiangmen Inbright Lighting Co., Ltd

Product Category

Hot Products

Click To Enlarge

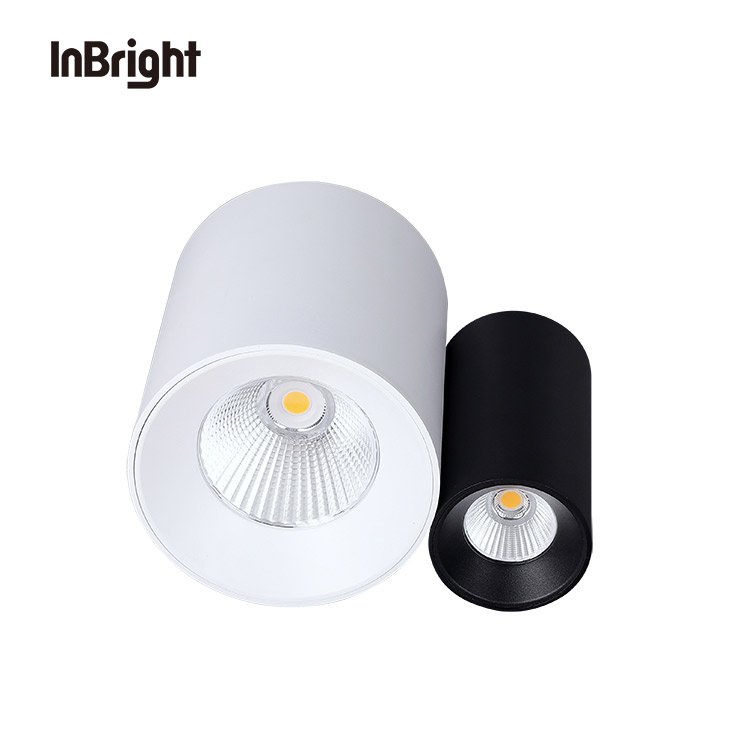

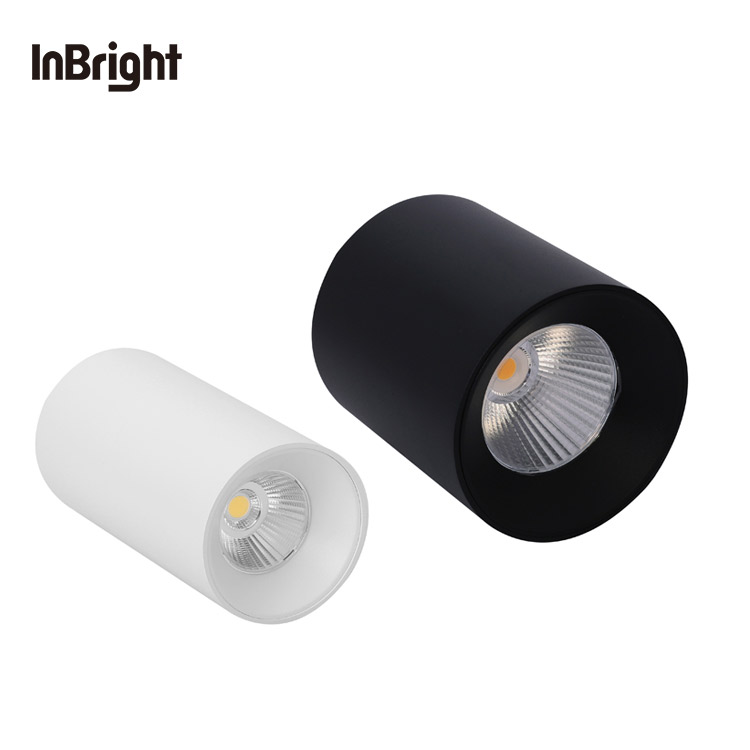

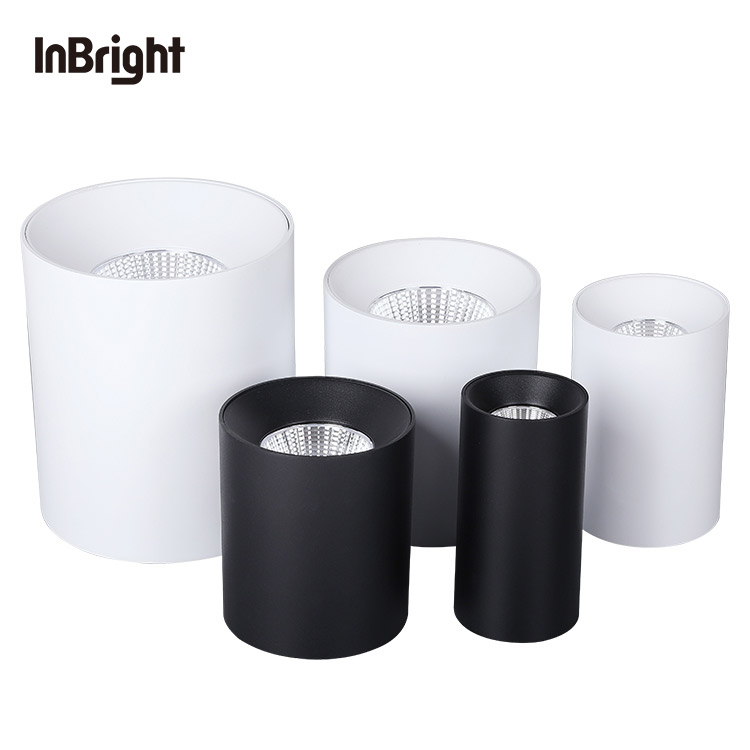

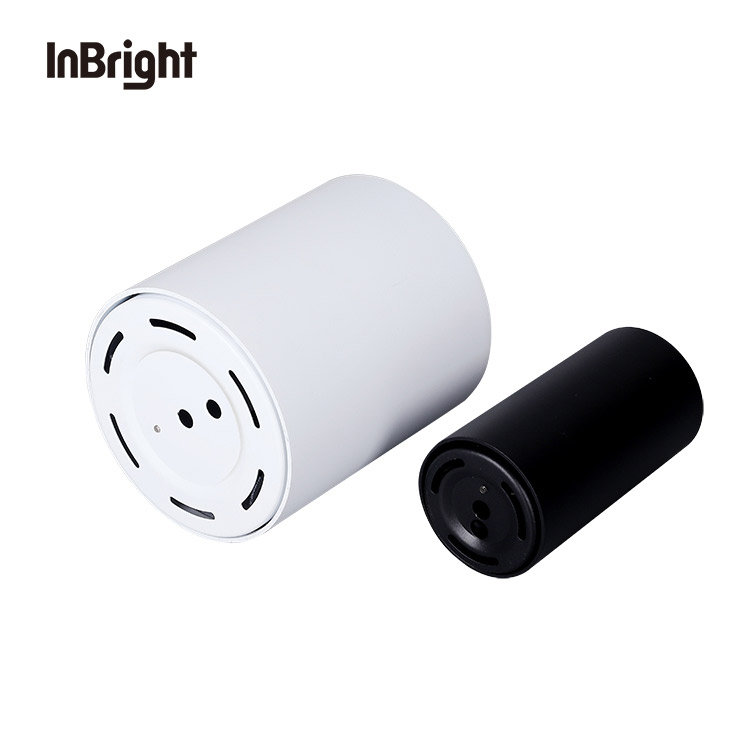

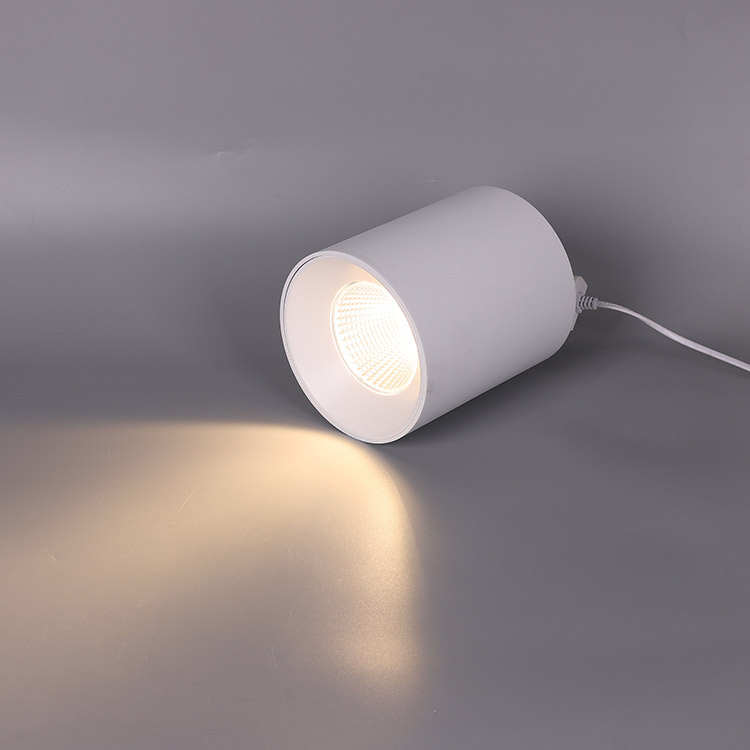

IBDL232

Model No

Diemnsion

Cutout

Application

Power

Beam Angle

Color Temp

CCT

Power Factor

Working Voltage

IP Grade

Dimming Function

LED Chip Optional

LED Driver Optional

Installation

Quantity:	- +

Model No.	Watts	Lamp Outer Size	Cutout Hole Size	Beam Angle	LED Type & LED driver
IBDL232D074	10 W	Ø74×H.147mm	\|	15°\|24°\|38°\|60°	• LED Color:2700K\|3000K\|3500K\|4000K\|5000K\|5700K\|6500K • Body Material：Die-casting Aluminum • CRI：Ra.80\|Ra.90 IP44 * Type E--- Bridgelux chipset LED LM80 listed & Constant Current LED driver AC100-240V; Type P1--- CREE LED &Lifud/Eaglerise LED driver AC220-240V; Type P2--- CREE LED &Lifud LED driver AC100-120V *
IBDL232D097	18 W	Ø97×H.152mm	\|
IBDL232D115	25 W	Ø115×H.135mm	\|
IBDL232D140	32 W	Ø140×H.160mm	\|
IBDL232D170	50 W	Ø171×H.198mm	\|
IBDL232D186	60 W	Ø186×H.214mm	\|
