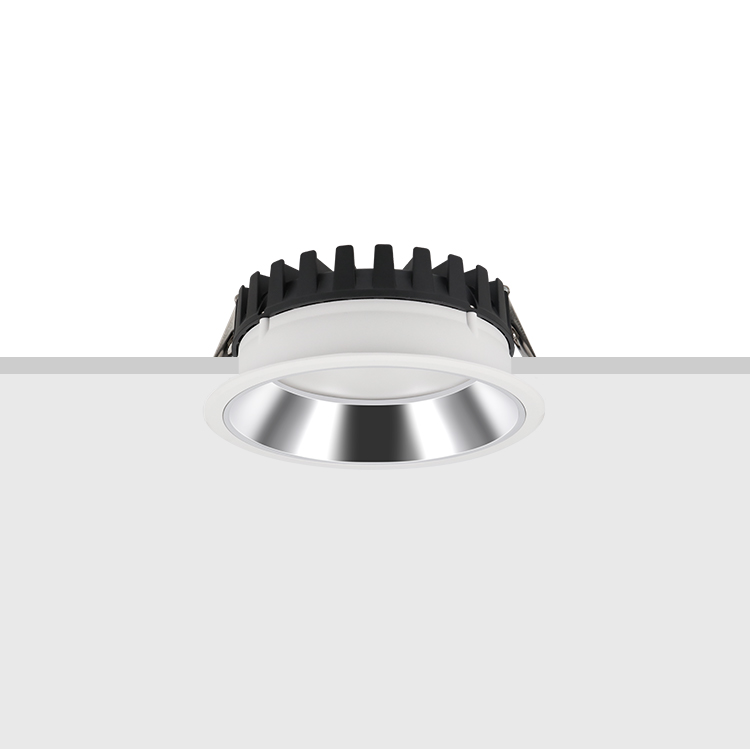

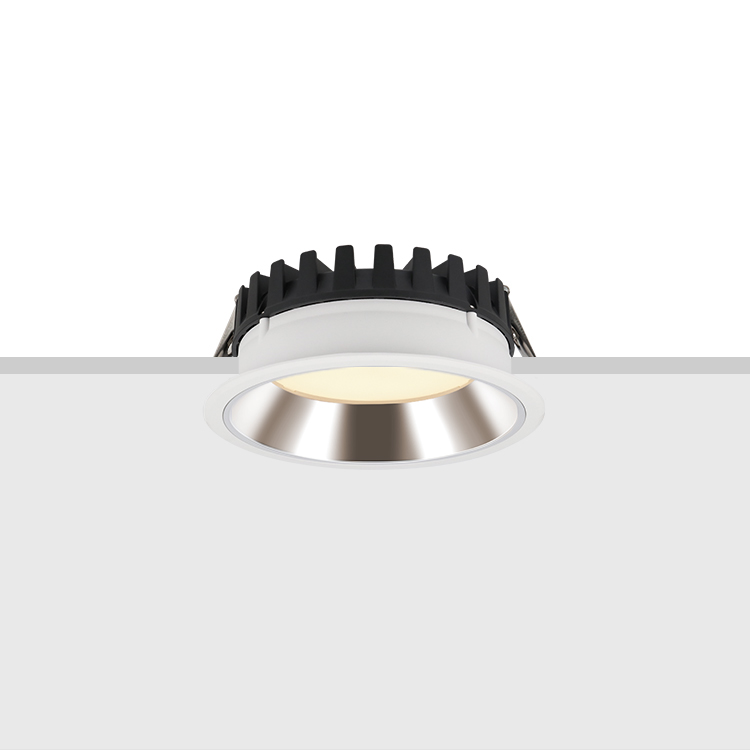

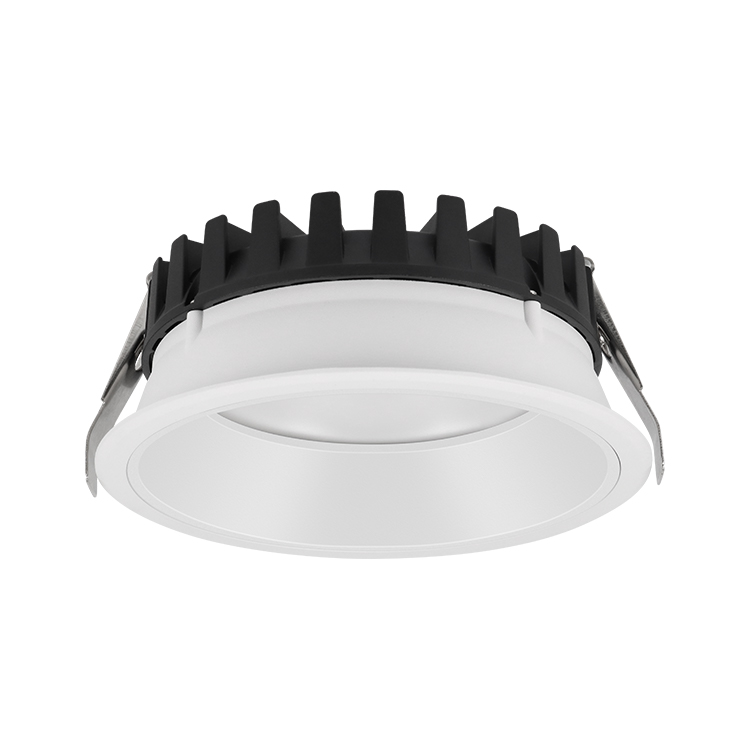

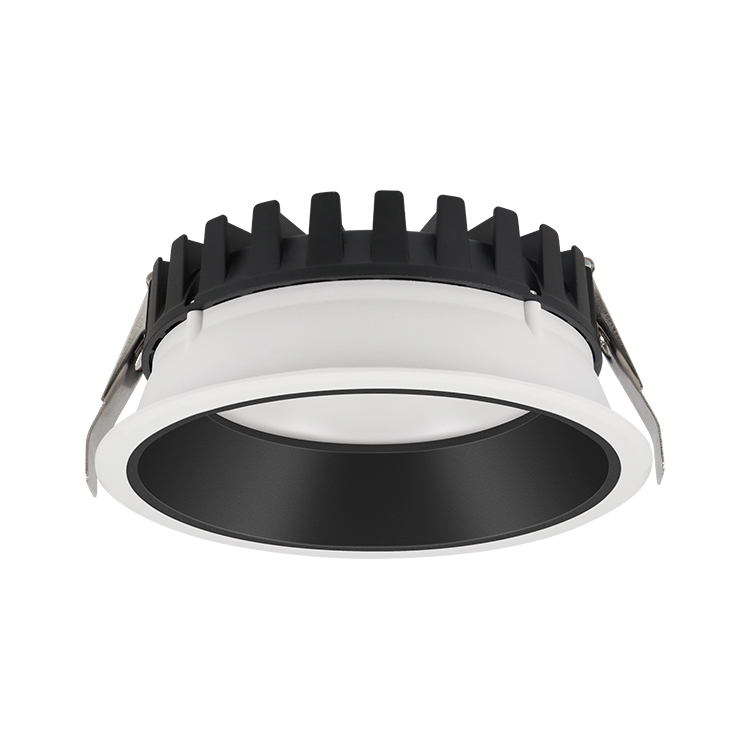

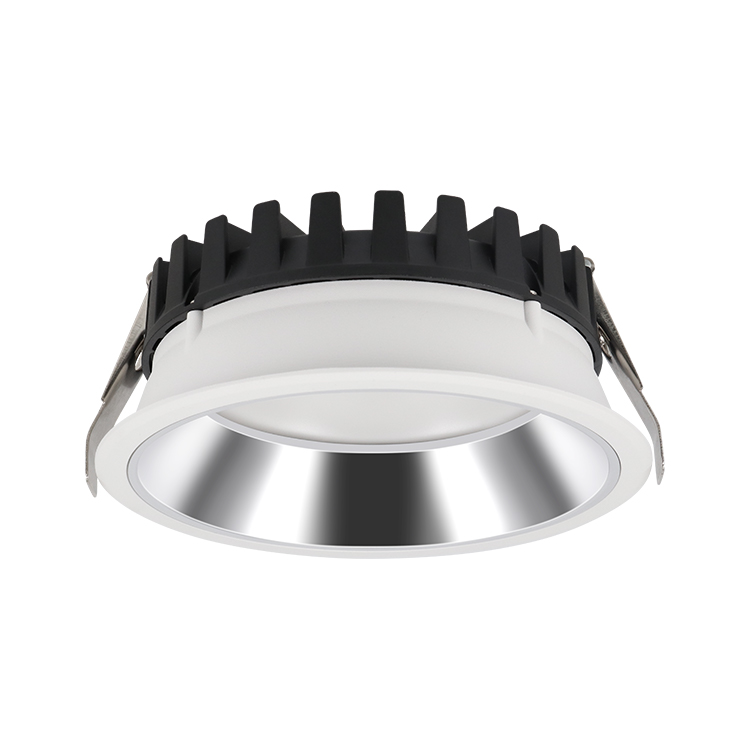

IBDL226CT175-CCT-Beam 85° Cutout 170-178mm SMD Fixed LED Downlight

Model No

Diemnsion

Cutout

Application

Guestroom & Suite

Lobby & Reception

Restaurant

Conference Room & Office

Corridor & Hallway

Shop

Power

Beam Angle

Color Temp

2700K3000K4000K

CCT

Ra.80Ra.90Ra.98

Power Factor

PF>0.5PF>0.9

Working Voltage

AC200-240VAC100-277V

IP Grade

IP20IP54

Dimming Function

ON/OFFTriac Dimming0-10V DimmingDALI Dimming

LED Chip Optional

CREEBridgeluxHongliPhilipsOsram

LED Driver Optional

EagelriseLifudOsram

Installation

Recessed Mount

Quantity:	- +

Add To Cart Inquiry

Description

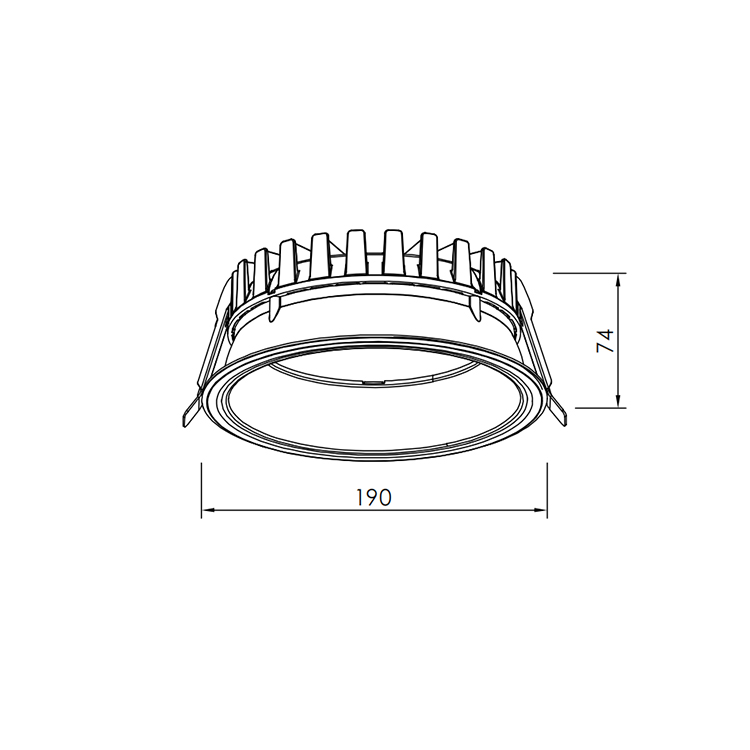

Line Art
Application
IES

Model No.	Watts	Lamp Outer Size	Cutout Hole Size	Beam Angle
IBDL226CT090-CCT	15W	Ø104*H69mm	Ø90-95mm	85° Fixed
IBDL226CT115-CCT	20W	Ø129*H69mm	Ø115-120mm
IBDL226CT140-CCT	25W	Ø155*H74mm	Ø140-145mm
IBDL226CT175-CCT	35W	Ø190*H74mm	Ø170-178mm
IBDL226CT200-CCT	42W	Ø220*H84mm	Ø200-208mm
